BS PROPS
BS PROPS
BS Props fully conform to the requirements of BS 4074: 1982 and have been tested in accordance with BS 5507 Part 3: 1982
BS Props are manufactured from high quality material with a powder coated finish for long life and are highly resistant to site wear and tear.
BS Props can be used on all types of building and construction or for any use where an adjustable load bearing member is required.
The high tensile steel pin is located on the inner section for adjustment. The cast collar located below the pin gives fine adjustment for levelling or striking.
The rolled tread ensures no loss of material or strength at this critical point.
| Size | Minimum Ext | Maximum Ext | Weight |
|---|---|---|---|
| BS PROPSIZE 0 | 1.07m | 1.82m | 11.00kg |
| BS PROPSIZE 1 | 1.75m | 3.12m | 16.70kg |
| BSPROP SIZE 2 | 1.98m | 3.35m | 18.40kg |
| BS PROP SIZE 3 | 2.59m | 3.95m | 20.20kg |
| BS PROP SIZE 4 | 3.20m | 4.87m | 24.20kg |
MINI-SLIM SOFFIT SUPPORT
SOFFIT SUPPORT & WALL SOLDIER APPLICATIONS
MULTI-JOIST SPECIFICATION
MINI-SLIM PROPERTIES
Moment of Resistance
(X-X Axis) 15.00kNm
Flexural Stiffness
(E.l. xx) 1224 kNm2
(Obtained from Testing)
Maximum Permissible
Reaction Load 40 kN
(Maximum Tie Rod Load)
(Minimum 75mm bearing)
Overall Depth 200mm
Overall Width 150mm
Moment of Resistance
at Joint Position 5.0 kNm
(X-X Axis)
Minimum Factor of Safety 2.0
| Code | Description | Weight (kg) |
|---|---|---|
| 2290 | 1200mm Mini Slim Beam | 14.60 |
| 2291 | 1800mm Mini Slim Beam | 20.55 |
| 2292 | 2400mm Mini Slim Beam | 26.50 |
| 1807 | M16x35 HT Set Pin | 0.08 |
| 1832 | M16 Hex Nut | 0.04 |
| 2317 | Super Slim Lifting Plate | 2.95 |
| 2341 | Super Slim Plumbing Foot | 10.43 |
| 2342 | S/Slim Turnbuckle 914-1222 | 8.25 |
| 2345 | Super Slim Access Bracket | 6.75 |
| 2346 | Super Slim Support Plate | 5.45 |
| 1747 | M20x90 Bolt with Nut | 0.36 |
| 4164 | 165mm Strip Head 135-200mm | 5.50 |
THE BAR SYSTEM
FORMWORK ACCESSORIES
TIE BAR SYSTEM 15/20mm – CUT TO LENGTH SERVICE
WING NUTS, WALER PLATES & TIE BARS
FORMWORK ACCESSORIES
WING NUTS
Knock on wing nuts used in conjunction with waler plates for securing tie bars in formwork applications.
15mm, 20mm wing nuts

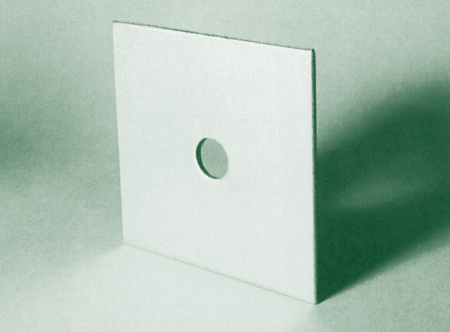

WALER PLATES
- 120 x 120
- 15mm, 20mm plates
- Weight 15mm 1.25kg each
- Weight 20mm 1.16 kg each
TIE BAR
- 6mtr lengths
- Weights 15mm, 6mtr 8.64 kg per length
- Weights 20mm, 6mtr 15.36 kg per length
ROAD FORMS
STANDARD ROAD FORMS
- 4mm Rolled section square edged
- 3mtr in length
- 10 no holes per 3mtr length
- Dowel bar holes at 300crs
- Dowel bar holes 22mm
- Sizes l00mm, 150mm, 200mm
- Weights l00mm 150mm 200mm 27.2kg 30.8kg 36.3kg each

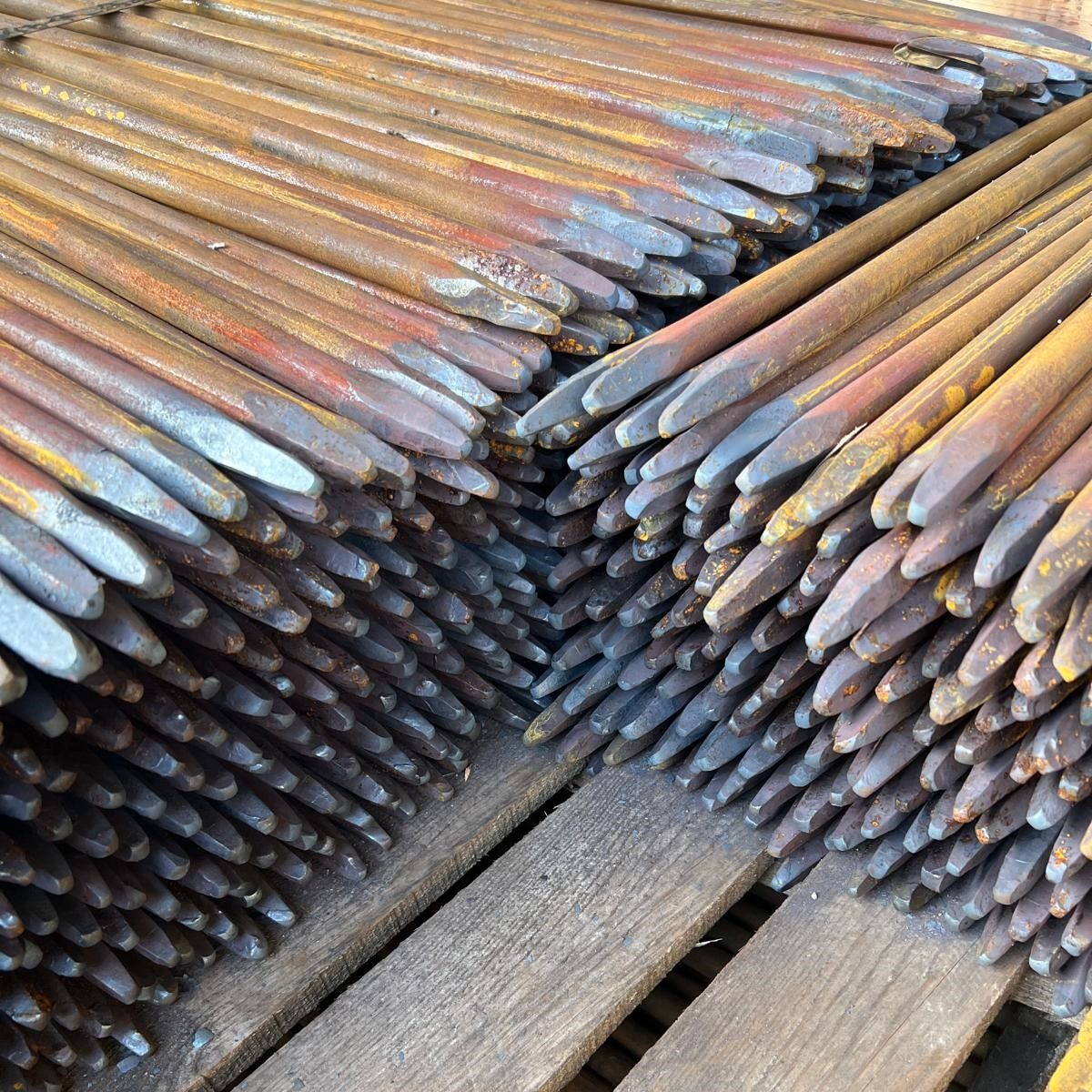

ROAD FORM STAKES
- 20mm diameter
- Lengths 600mm, 900mm, 1200mm
- Forged ends pointed
BAR BENDERS, BAR CHOPPERS & MANUAL BAR BENDERS
BAR BENDERS – CUTTERS
HYDRABEND / LR955B / ELECTRIC
Reinforcement Bar Bending Machine
Capacity: 40mm High Tensile Steel
BAR CROPPER
KAP 20681 MANUAL BAR BENDING MACHINE
CAPACITY: 20MM MILD STEEL 16MM HIGH TENSILE STEEL
An extremely simple machine to operate, and built of steel to resist hard wear. This machine is complete with bending handle, backstop and one former 1 1/2″ DIA.
WATERBAR JOINTING
WATERBAR JOINTING
APPLICATOR GUNS
APPLICATOR GUNS
